• Modular for a flexible approach to energy storage

• Market leading power density and efficiency

• Ultra-Low Installation Cost/Time

• DC Coupled Solar

• Manufactured in Great Britain

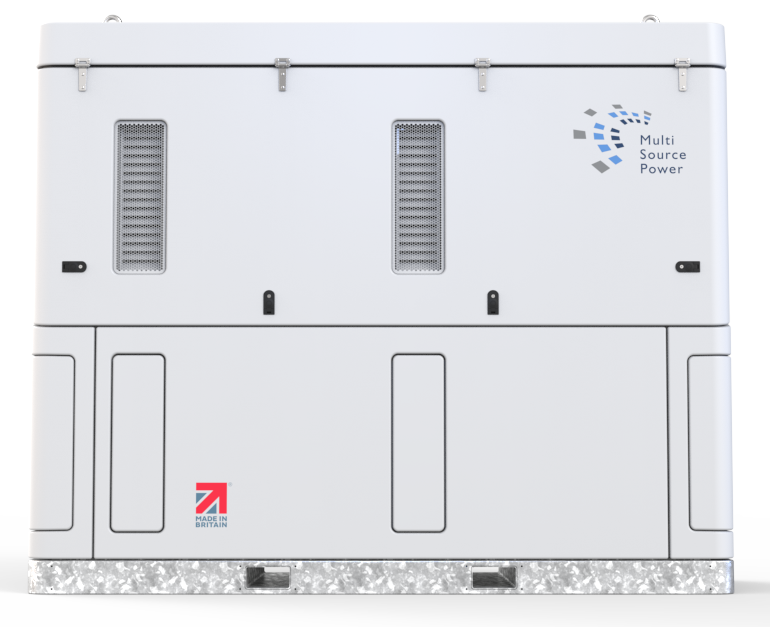

Our Flex-ESS250 hybrid power system is a fully-factory-built and tested, high-density, modular energy solution. It offers reduced project risk and cost thanks to its simple installation, small footprint, and lightweight construction. It also offers low operating costs thanks to its enclosed cooling and durable housing. Integrating KORE Power energy storage and our ground-breaking FLEX Inverter, Flex-ESS250 achieves an industry-leading, optimising footprint for applications where space is constrained or at a premium. Working with multiple power sources and output configurations, the Flex-ESS250 provides the ultimate, flexible approach for most applications.

System Configuration

The FLEX-ESS system can be paralleled to multiple MW level in a highly variable range of storage and power configurations. Each GRP housing contains 250kVA of 3 phase AC Power with blocks of 104kWh of storage to a maximum of 832kWh (double stacked).

Additional energy expansion modules are available with each box housing up to 1MWh of additional capacity, configurable as required.

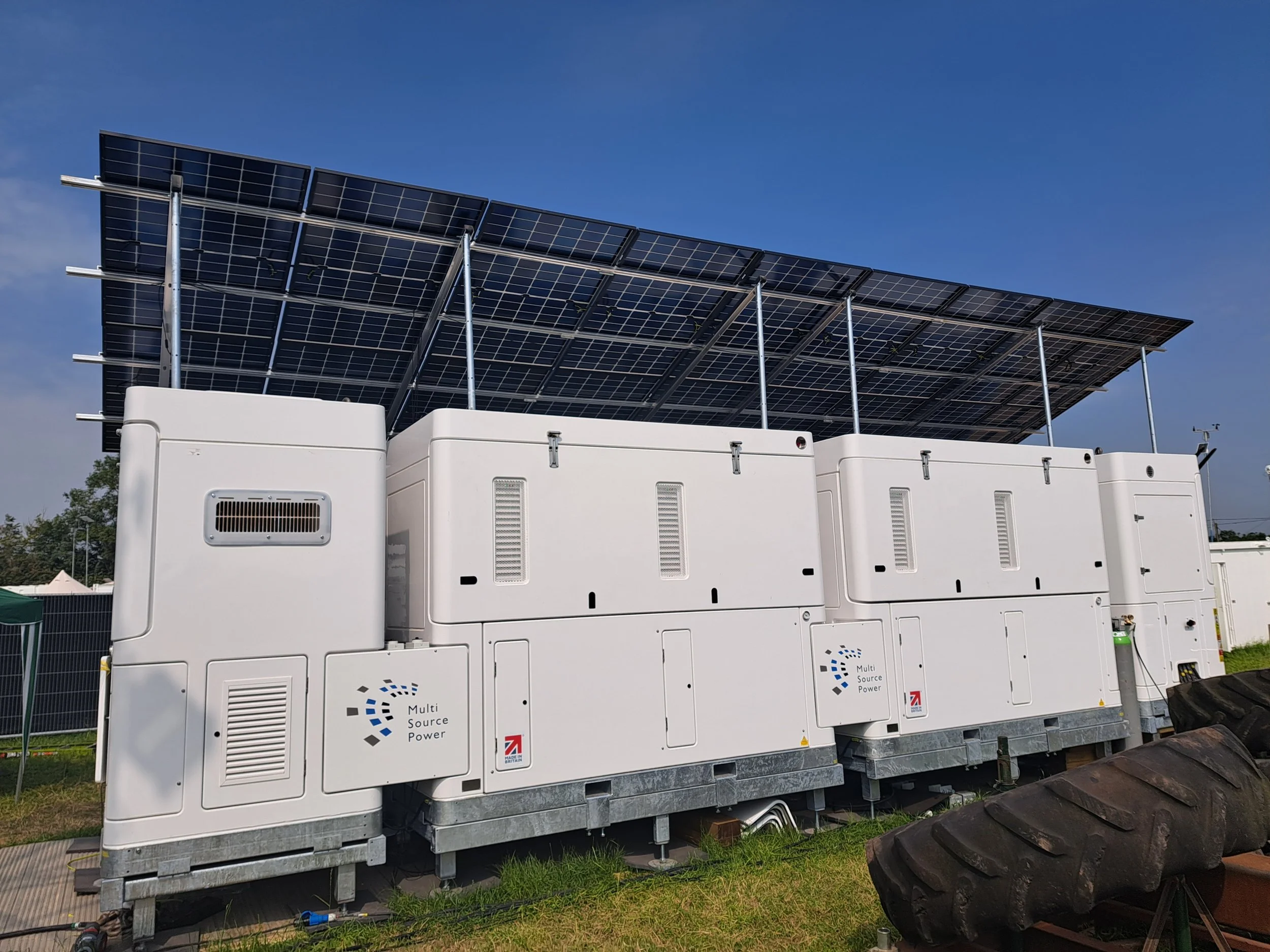

With its small footprint, multi box configurations can be arranged to preserve space in limited areas and still be planning friendly or discreet installations in any colour preference.

Flex-ESS250 for a full spectrum of energy demands.

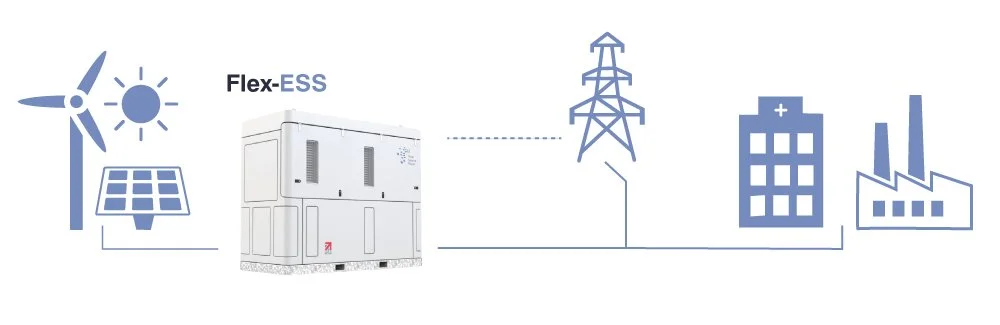

On Grid/Grid Services

With ultra-fast response bidirectional 4-quadrant operation, the Flex-ESS250 system offers ACTIVE and REACTIVE power services to both industrial and commercial operators. With only the highest quality components and water cooling, the system delivers outstanding up time, minimal OPEX and > 20 years service life, ensuring long term reliable access to those current and future revenue streams.

• Voltage control and droop

• Power factor control

• Reactive power (VAR)

• Frequency regulation and response

• Peak shaving

• Curtailment avoidance

• Scheduled shifting or islanding

• Accurate and fast ramp rate control

• Black start and UPS

• Remote command power and operation

• 24hr automated system monitoring

• EV Charging

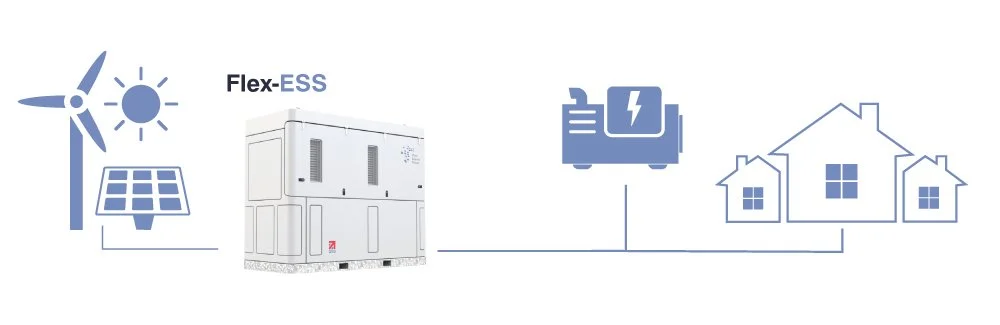

Off Grid

From microgrid to industrial power, FLEX-ESS250 gives you the power you need when you need it. With the ability to deliver 100% capacity to the AC load and still store excess solar, direct line control and optimise any fuel derived generation, keeping OPEX to a minimum and maximising revenue.

• 250 kVa Hybrid inverter

• Grid-forming and following

• High-performance storage by KORE Power

• Black start

• Generator reserves displacement

• Ramp rate control

• Power factor correction

• Load and peak shaving

• EV Charging
